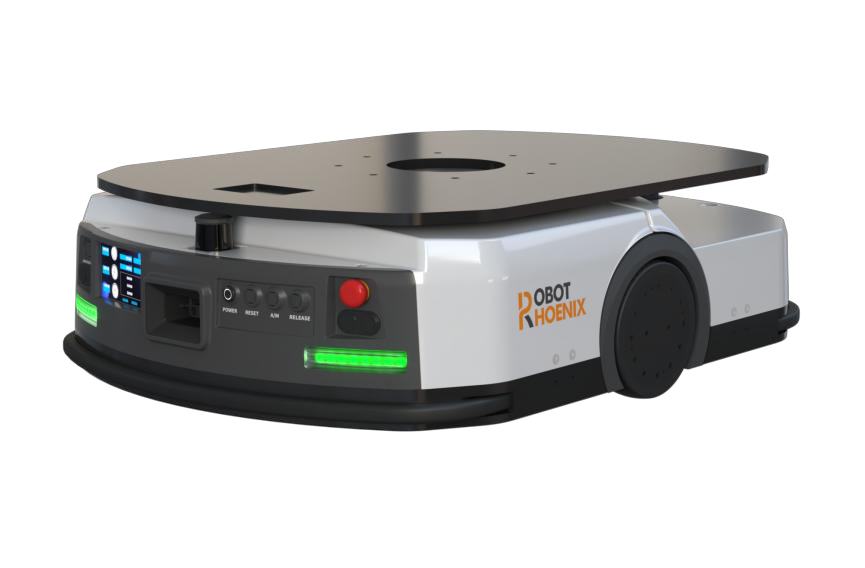

Camel-600-SP2.1

Latent Mobile Robot

A reliable material handling robot that supports lifting, transporting, and rotating payloads up to 600kg. It serves as an expandable platform designed to adapt to diverse application scenarios in E-commerce, 3C Electronics, Tobacco, Pharmaceuticals, and more.

Functional Features

Positioning & Navigation: Utilizes hybrid navigation technologies, such as QR code and Laser SLAM, to achieve high-precision positioning.
Motion Control: Employs dual-wheel differential drive, supporting versatile motion control modes including forward, backward, and in-place rotation.
Safety Protection: Supports multiple safety measures, including dual front/rear LiDAR, contact-based edge collision detection, and emergency top buttons.
Power Management: Supports multi-level battery threshold control with customizable minimum charging levels and idle-time charging management.

Technical Specifications

Category	Parameter	Specification
Basic Specs	Dimensions (LWH)	950 * 650 * 255 (±5mm)
	Rated Payload	600 Kg
	Self-weight	130 Kg
	Lifting Height	60 mm
Motion Performance	Rated Speed (Unloaded / Full Load)	1.9 m/s / 1.5 m/s
Motion Performance	Drive Type	Differential Drive
Navigation & Battery	Stopping Accuracy	±10 mm
Navigation & Battery	Battery / Charging Time	8 h / <1.5 h

*The positioning accuracy specified above is obtained under ideal conditions.

Operating Environment

Floor Conditions: Indoor environment. Optimal floor materials are hard concrete or conductive plastic (ESD). Floor slope should not exceed 3°.
Temperature: Operating Range: -10°C to 40°C. Charging Range: 0°C to 40°C.
Signal: Dual-band WiFi (2.4GHz/5GHz) with coverage > -70 dBm.
