CIJ Aricode 2120

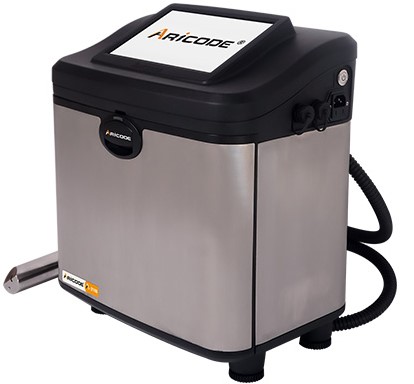

Aricode A-2120 Coding Machine

Advanced, Reliable, and Innovative Coding Solutions

Advanced

Unix based intuitive graphical user interface via large touchscreen
Full range of communications function (4G*, wifi, LAN, USB, custom user port)
Industry 4.0 ready
Modern 10.4" touchscreen

Reliable

Sealed electronics enclosure rated to IP66
One touch start and stop performance with sealed nozzle technology
Service free modular ink system
Patented pump control technology for economic operation

Innovative

Unique patented one touch plug and play printhead
Patented drip lock consumable cartridges
Service free drip lock filter pack
All new design containing multiple new and patented technologies developed by our team of experienced industry experts

Technical Parameters

Line Speed Capability

Maximum speed 500m/min (5x4 font 10 characters/inch)
Up to 4 lines of print (32 dots)

Available Fonts (HxW)

5x4, 5x5, 7x4, 7x5, 9x5, 9x7, 11x7, 12x8, 13x8, 16x11, 20x14, 24x16, 24x24, 32x24, 16x5 (NLQ font)
Bold mode available, drop repeat available up to 9 times

Character Height

1.5mm - 20mm (Throw distance dependant)

Memory Capacity

1000 Messages

Throw Distance

Up to 30mm

Display and User Interface

Unix based intuitive user interface on 10.4" HD touchscreen

Custom Logo / Graphics

Built in logo editor or load via USB

Data Interface

Product Detect, Encoder, USB Type A, RJ45 (Ethernet), RS232
