Feature

7 inch capacitive touch screen
Intergrated nozzle design, aviation aluminum sandblasting shell
Built in Linux high performance operating system
New SCSI printer head connecting design
Simple operation and stable printing
It can be seamlessly spliced with double nozzles or independently installed with dual nozzles
The cartridge is snap-fitted for simple and reliable
Convenient butt-joint packaging machine, paging machine and conveyor
Supporting OEM brand and functional personality customization

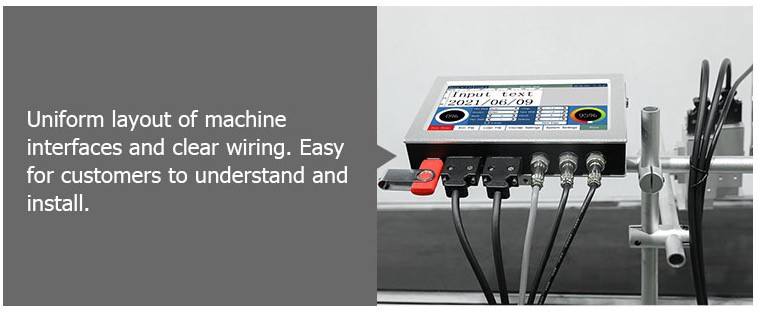

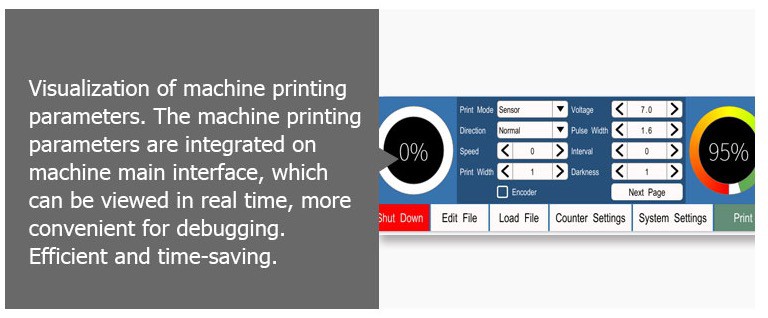

Machine Interface

ADVANTAGES:

SPECIFICATIONS:

Nozzle:Thermal foaming nozzle
Operating system :Linux
CPU:Quad core 1.4Hz
DPI: 600 maximum
Language:English, Chinese, Arabic, Korean, Italian,Russian, Spanish, Portuguese,Turkish

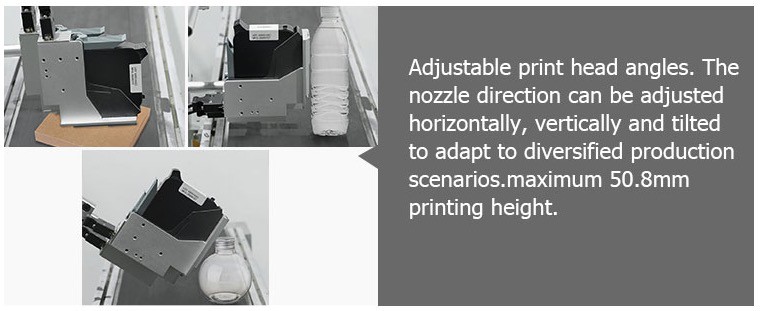

Printing height: Single head: 2-25.4mm; Double head: 2-50.8mm
Printing distance:2-5mm
Print content:Text, time, batch number, serial number, logo, QR code, barcode
Storage:More than 1000 message (external USB make the information transfer in a free way)
Printing length: 2000 characters for each message, no limitation on length
Printing speed Max speed : 150m/min

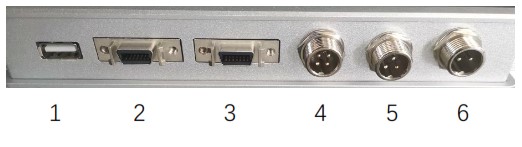

External interface:USB, Photoelectric interface
Voltage:110-220V±20% AC input, 16V/2A DC output
Working environment:Temperature:0 - 45℃(best 20-30℃)Humidity: 40% - 60% Rh
